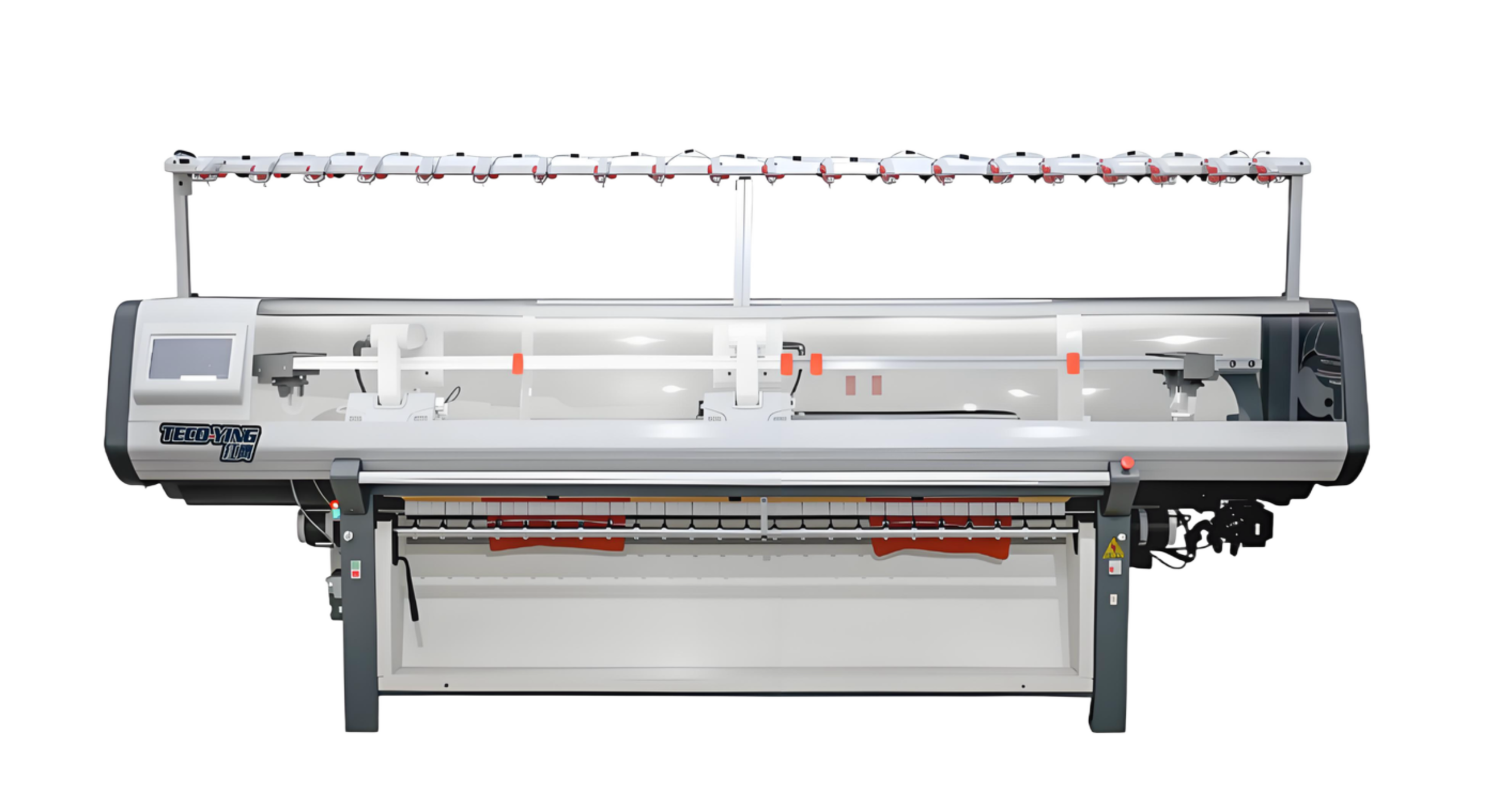

HY1+1-80 1+1 System Machine

HY1+1-80 1+1 System Machine

                                  Product Parameter
Gauge 3G/3.5G/5G/7G/8G/10G/12G/14G/16G/18G/multi-gauge
Knitting speed Maximum 1.6 m/s , 32 segment programmable speed
Selector 8 section of electronic needle selector
Language Customized language: support Chinese, English, Spanish, etc
Voltage 220V/380V
Size and Weight 3450*750*1750mm, 830kg

Product Description

  • Customized computerized flat knitting machine (Dual-carriage with Single system in 72 inch /80 inch) can fulfil basic pattern (half milano,full needle ,single face and so on) irregular multi-colors jacquard, intarsia, handing and so on, suitable for silk, chemical fiber, wool,acrylic fiber, blending yarn, cotton yarn to knit the sweater, collar,placket, hem, cuff, scarf, pocket, pants and other knitting fabric.
  • It is suitable for woven sweaters, scarves, hats and clothing accessories for silk, spun silk, synthetic yarn, wool, acrylic fibers, blending, yarn and other raw materials.
  • This model adopts HengQiang or RayNen integrated software, equipped with small carriage and fast rotation technology,which greatly shortens the weaving time. The efficiency of single- sided machine is 15% higher than previous version.
  • It is equipped with electronic probe system, enable the machine to detect the problem of floating yarn precisely, and reduce the chance of needle crash.
