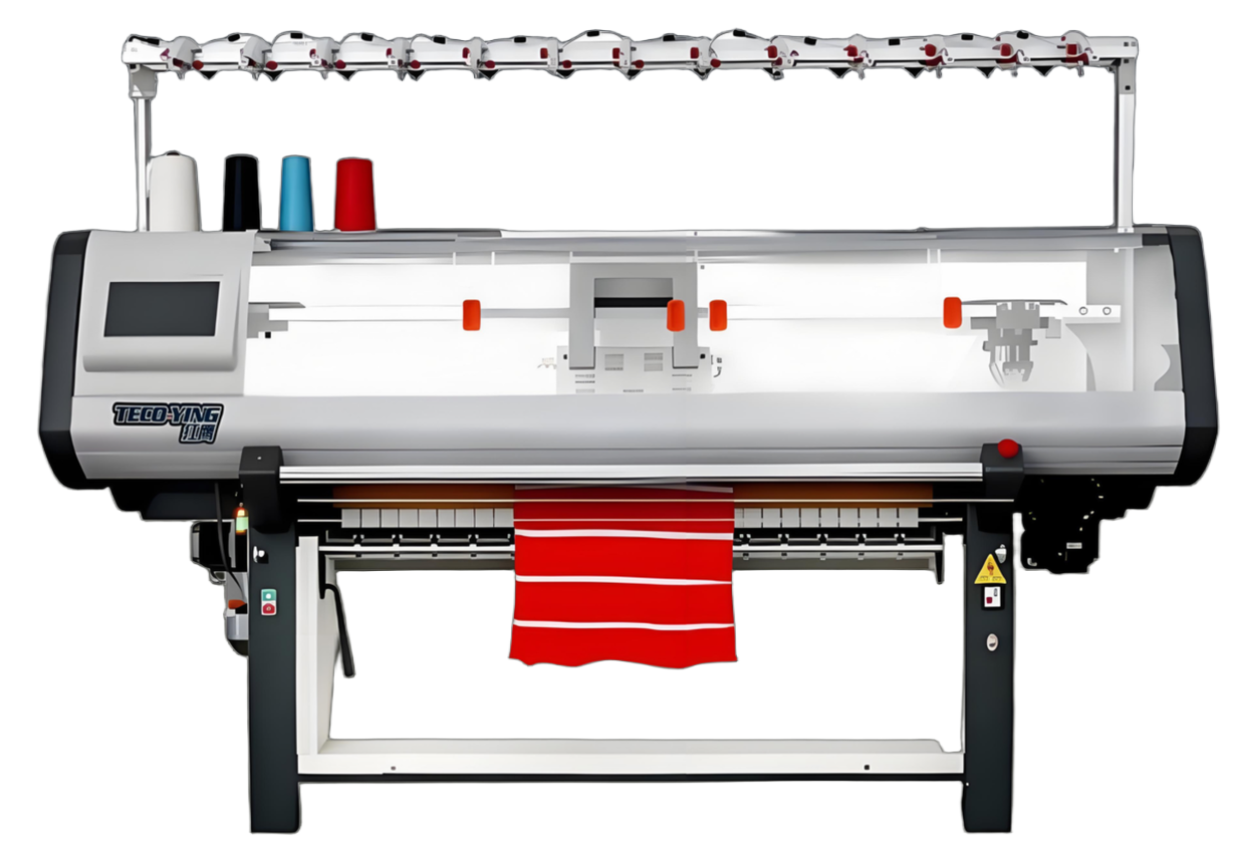

HY2-52 Double System Collar Flat Knitting Machine

HY2-52 Double System Collar Flat Knitting Machine

                                  Product Parameter
Gauge 12G/14G/16G/18G
Knitting speed Maximum 1.6 m/s , 32 segment programmable speed
Selector 8 section of electronic needle selector
Language Customized language: support Chinese, English, Spanish, etc
Voltage 220V/380V
Size and Weight 2950*950*1800mm, 950kg

Product Description

  • Double system machines raid carriage return, stable quality, multi-functions, improves the efficiency about 20%. With the dynamic control technology, same line can achieve the effect of different density.
  • It is suitable for woven sweaters ,collars, scarves, clothing accessories for silk, spun silk, synthetic yarn, wool, acrylic fibers, blending, yarn and other raw materials.
  • This model adopts HengQiang or RayNen integrated software, equipped with small carriage and fast rotation technology,which greatly shortens the weaving time. The efficiency of single- sided machine is 20% higher than previous version.
  • It is equipped with electronic probe system, enable the machine to detect the problem of floating yarn precisely, and reduce the chance of needle crash.
  • Knitting Width could be customized in 36inchs,45inches,52inches,72inches,80inches.

Collar Flat Knitting Machine
