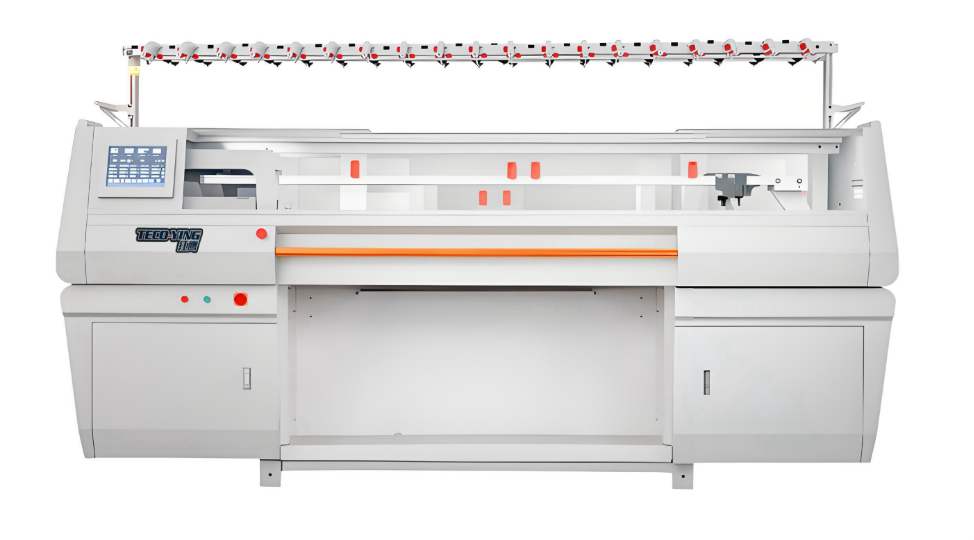

HY2-60 Double System Machine

HY2-60 Double System Machine

                                  Product Parameter
Gauge 3G/3.5G
Knitting speed Maximum 1.4 m/s , 32 segment programmable speed
Selector 8 section of electronic needle selector
Language Customized language: support Chinese, English, Spanish, etc
Voltage 220V/380V
Size and Weight 2750*750*1750mm, 860kg

Product Description

  • Double system machines are equipped with high roller to meet the tension requirement for partial knitting, achieve the patterns of transfer, tuck, pointel, jacquard, apparent shape, hidden shape, and other customized pattern knitting functions, can knit basic single or double jersey plain fabric, irregular multi-colors jacquard, cable structure patterns and so on.
  • It is suitable for woven sweaters, scarves, hats and clothing accessories for silk, spun silk, synthetic yarn, wool, acrylic fibers, blending, yarn and other raw materials.
  • This model adopts HengQiang or RayNen integrated software, equipped with small carriage and fast rotation technology,which greatly shortens the weaving time. The efficiency of single- sided machine is 15% higher than previous version.
  • It is equipped with electronic probe system, enable the machine to detect the problem of floating yarn precisely, and reduce the chance of needle crash.

hy2 60 double system machine
